Satellite oil slick detection integrated with oil seep characterization using Piston Core Technology supported by high-resolution geochemistry is considered today a strategic technology for exploration in frontier basins were geophysical and geological data are scarce or non-existent for all major petroleum E&P companies.

The presence of oil slicks and seeps at the surface of the ocean were interpreted within a context of petroleum systems present in the area and highlighted the occurrence of mixtures from Type I and Type II organic matter attributed to presalt lacustrine saline source rocks generation, mixed with low thermal maturity and partially biodegraded marine siliclastic derived Albian-Cenomanian derived oils.

The acquisition and interpretation of Radarsat-1 images offer a unique methodology for subsurface pre-exploration.

Full references of all images are listed in the reports

1. Introduction
2. Geologic Setting
3. Methodology
   1. Oil Slick
      1. Study Area
      2. Selection of RADARSAT–1 Satellite Images
      3. Monitoring Meteorological and Oceanographic Conditions
   2. 2 Piston Core
      1. Description
      2. Selection of Piston Core Locations
      3. Core Acquisition
      4. Geochemical Analysis of Piston Cores
4. Oil Slick Results
   1. Classification by Textures of RADARSAT–1 Images
   2. 2 Monitoring Meteorological and Oceanographic Conditions
   3. Seepage Slicks Interpretation
      1. Seepage Slicks over the Regional Geology
5. Piston Core Results
   1. Area of the blocks BM-S-9, 21, 22 and 24
   2. Sample Collection and Core Penetration
   3. Surface Geochemistry and Microbial Techniques
      1. Screening Analyses
      2. High Resolution Geochemical Techniques
   4. Geochemical Results and Discussions
      1. Headspace gas
      2. Sorbed Soil Gases
   5. Integration of Oil Slicks, Oil Seeps and Seismic Data
6. Conclusions and Recommendations
7. Bibliography

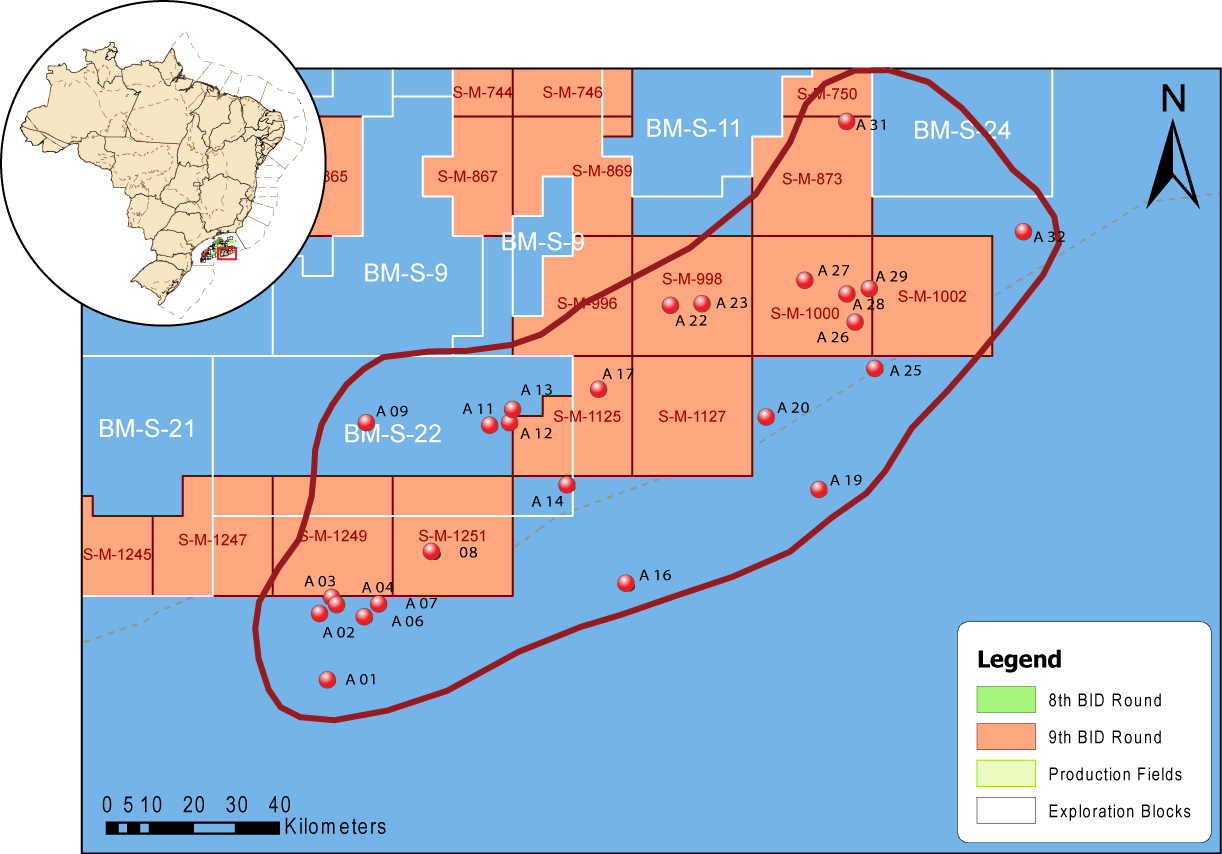

1. Map of the study area where oil slick and Piston Core data were acquired and integrated with oil fields, seismic data and exploration blocks.
2. Map of the study area overlaid over the Santos Basin bathymetry (ETOPO) image shadowed and colorized and the location of the exploratory blocks over which the piston core survey was performed (white Blocks). This image was processed starting with GRID format data with NE lighting and 45o elevation.
3. Index map with coverage of 24 (twenty four) RADARSAT-1 images filed and programmed for study area
4. Example of seismic data used for Piston Core location selection.
5. Example of a vessel set up for piston core and Heat Flow acquisition.
6. Example of positioning procedure using the underwater hydroacoustic piston positioning system to ensure accurate core placement. This system is very important in waters deeper than 200m, where bottom currents may displace the sampling location of the piston corer and Heat Flow prior to collection.
7. Illustration of a sub-bottom profile used to ensure the sampling location and core and Heat Flow positioning within a 10m range. HRT-Petroleum and FUGRO-OceansatPEG have vast experience in both offshore shallow water and deep water operations in Brazil and abroad.
8. On board core description, logging and sectioning.
9. HRT-Petroleum Laboratory, in Rio de Janeiro, where piston core samples are analyzed.
10. Index map with coverage of 24 (twenty four) RADARSAT-1 images filed and programmed for study area and the 44 (forty four) seepage slicks candidates identified in a preliminary analysis.
11. Location of RADARSAT-1 full resolution images used in this project.

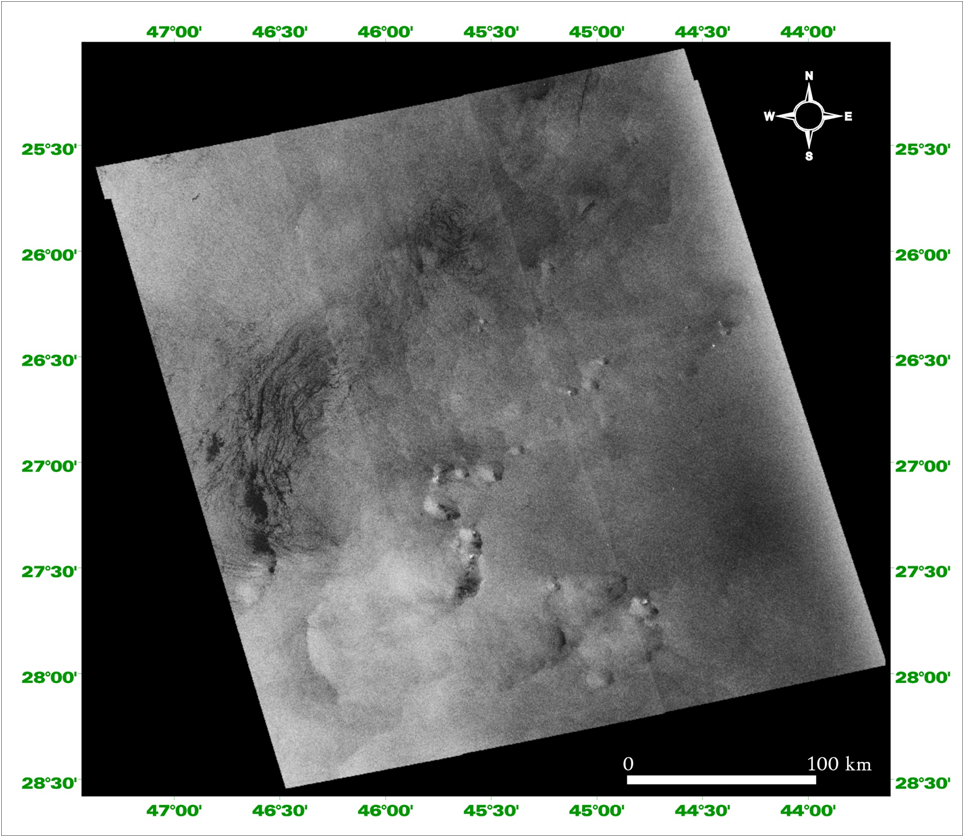

12. Descending RADARSAT-1 Wide 1 (W1) image acquired on July 16, 1998 at 0828:47 (GMT).
